제품 상세 정보:
결제 및 배송 조건:
|
| 적용 가능한 자료: | 고밀도 폴리에틸렌 LDPE PP | 특징: | 높은 방벽 병 |
|---|---|---|---|
| 사이즈메인 머신: | 360*220*236cm | 레이어 디자인: | 더블 레이어 디자인 |
| 다이 헤드 번호: | 1/2/3/4 | 스크루 가열 용량: | 6kw |
| IML: | 주형 라벨링에서 | 쪼갠 타입: | 전기 같은 |
| 강조하다: | double layer pet bottle blow molding machine,automatic blow molding machine for B2B,MP75FD pet bottle molding machine |
||

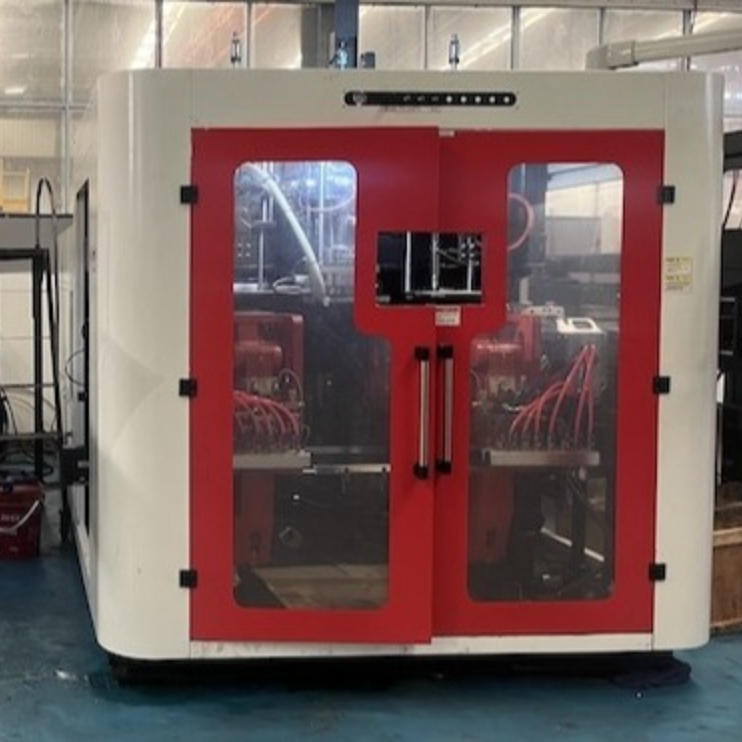

An Automatic Blow Moulding Machine is an industrial machinery solution designed for producing hollow plastic items such as bottles, containers, jars, and tanks. The process involves heating plastic material until pliable, then using compressed air to expand it into the shape of surrounding mould walls, enabling efficient and precise creation of hollow plastic objects.
| Parameter | MP75FD φ80 |
|---|---|
| Material | PE PP |
| Max Container Capacity (L) | 0.1 |
| Number of Die Sets | 4 |
| Machine Dimensions (L×W×H) (M) | 3.6×2.2×2.36 |
| Total Weight (Ton) | 5.5 |
| Clamping Force (KN) | 120 |
| Platen Opening Strokes (mm) | 180-480 |
| Toggle Stroke (mm) | 300 |
| Max Mould Size (W×H) (mm) | 460×450 |
| Screw Diameter (mm) | 80 |
| Screw L/D Ratio | 24 |
| (HDPE) Plasticizing Capacity (kg/h) | 100 |
| Total Power (kw) | 65.13 |
| Average Energy Consumption (kw) | 31 |
The MP75FD offers flexible customization including:
