| 맥스 생성물량: | 2L | 가소화 능력(HDPE): | 45 |
|---|---|---|---|
| 적용 가능한 소재: | PE PP PVC PA | 플레이트 스트로크: | 380 밀리미터 |
| 폼 클램핑 힘: | 30KN | 머리들의 수: | 1 、2、3、4,5,6 |
| 기계 무게: | 3.5 톤 | 나사의 가늘기 비율: | 24 |
| 강조하다: | PVC Extrusion Molding Machine,PA Extrusion Molding Machine,PP Extrusion Molding Machine |
||

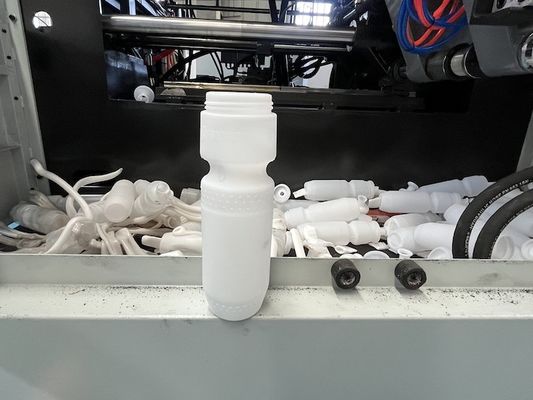

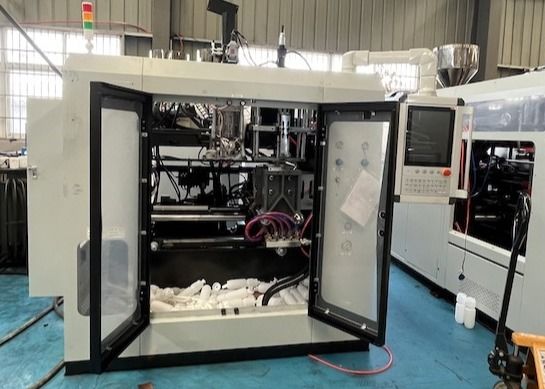

MP plastic blow molding machine is designed for processing various plastic hollow products made with high-molecular material. This machine is capable of producing hollow products ranging from 5 milliliters to 100 liters in size. The range of products includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others. It has the ability to blow different materials like PE, PP, PVC, PA, PC, PS, and EVA, while ensuring a flawless production process.
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of molds.
g) Three operation modes - "Manual", "Semi-Auto", "Full Auto", are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mold closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
| System | Item | Unit | Basic Parameter |
|
Basic specifications
|
Applicable materials | PE PP PVC PA… | |
| Max product volume | L | 2 | |
| Number of heads | SET | 1,2,3,4,5,6 | |
|
Machine dimension (LxWxH) |
M | 2.87X2.14X2.28 | |
| Machine weight | TON | 3.5 | |
|
Mould clamping system |
Mould clamping force | KN | 30 |
| Platen opening strokes | MM | 120-350 | |
| Plate stroke | MM | 380 | |
| Max mould sizes(WxH) | MM | 360X300 | |
|
Extrusion system
|
Screw diameter | MM | 55 |
| Screw slenderness ratio | L/D | 24 | |
| Plasticizing ability (HDPE) | KG/H | 45 | |
| Screw heating stage/zone | Zone | 3 | |
| Screw heating power | KW | 10.1 | |
| Screw fan power | KW | 0.14 | |
| Extrusion motor power | KW | 11 | |
|
Head |
Head heating stage/zone | Zone | 5 |
| Head heating power | KW | 6.5 | |
|
Energy consumption |
Total machine power | KW | 40 |
| Oil motor power | KW | 7.5 | |
| Air pressure | MPA | 0.6-0.8 | |
| Compression air volume | M3/H | 0.8-1 | |
| Cooling water volume | L/H | 30 | |
When considering the application occasions and scenarios for the MEPER 5D 55d Plastic Extrusion Molding Machine, it is important to note its various attributes that make it suitable for a wide range of industries and production needs.
The MEPER 5D 55d is a fully automatic blow moulding machine, ideal for manufacturing plastic products with precision and efficiency. Its automatic extrusion blow moulding capabilities make it a versatile choice for businesses looking to streamline their production processes.
Hailing from China, this machine is certified with CE/ISO9001:2008 standards, ensuring high quality and reliability. With a minimum order quantity of just 1 set and negotiable pricing, the MEPER 5D 55d offers flexibility for businesses of all sizes.
The machine's mould clamping force of 30KN and max product volume of 2L make it suitable for producing a wide range of products. Its plasticizing ability, especially with materials like PE, PP, PVC, and PA, is rated at 45, ensuring efficient and consistent results.
With a machine weight of 3.5 tons, the MEPER 5D 55d is robust and stable, suitable for continuous use in various production environments. The standard packaging and delivery time of 25-35 work days further enhance its convenience for businesses.
Payment terms of L/C and T/T provide flexibility for purchasing, while the supply ability of 100 sets per month ensures timely availability for high-demand production needs.
In conclusion, the MEPER 5D 55d Plastic Extrusion Molding Machine is a reliable and efficient choice for businesses seeking a fully automatic blow moulding machine. Its versatility, certification, and production capabilities make it an excellent solution for a wide range of industries and applications.
Product Customization Services for MEPER 5D 55d Automatic Extrusion Blow Molding Machine:
- Brand Name: MEPER
- Model Number: 5D 55d
- Place of Origin: China
- Certification: CE/ISO9001:2008
- Minimum Order Quantity: 1 set
- Price: negotiable
- Packaging Details: standard packaging
- Delivery Time: 25-35 work days
- Payment Terms: L/C, T/T
- Supply Ability: 100 sets per month
- Screw diameter: 55mm
- Machine weight: 3.5ton
- Max product volume: 2L
- Mould clamping force: 30KN
- Plate stroke: 380mm
