| 폼 클램핑 힘: | 30KN | 플레이트 스트로크: | 380 밀리미터 |
|---|---|---|---|
| 가소화 능력(HDPE): | 45 | 적용 가능한 소재: | PE PP PVC PA |
| 나사 직경: | 55 밀리미터 | 나사의 가늘기 비율: | 24 |
| 머리들의 수: | 1 、2、3、4,5,6 | 기계 무게: | 3.5 톤 |
| 강조하다: | PVC PA Extrusion Molding Machine,2l Extrusion Molding Machine,2l plastic extrusion molding machine |
||

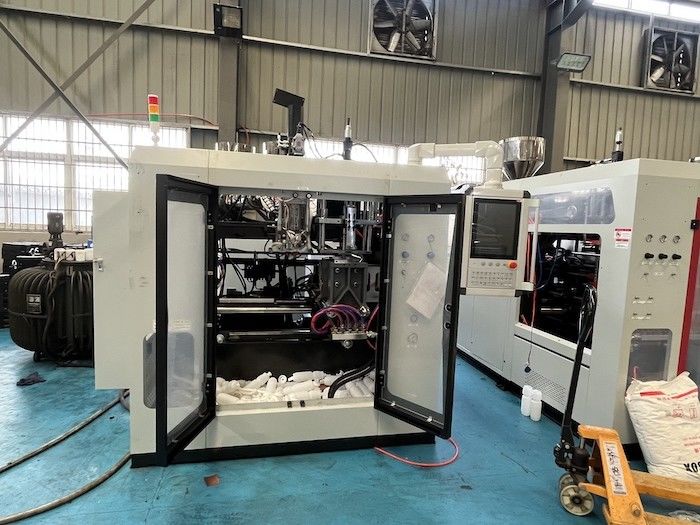

The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is well-suited for manufacturing hollow items ranging in size from 5 milliliters to 100 liters. These products encompass a wide range, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
Not only can this machine blow different materials like PE, PP, PVC, PA, PC, PS, and EVA, but it can also deliver impeccable processing capabilities, ensuring precise and efficient production.
1.1.2 Features
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices( no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
System Item Unit Basic Parameter
Basic specifications
| Applicable materials | PE PP PVC PA… |
| Max product volume | 2L |
| Number of heads | 1,2,3,4,5,6 |
| Machine dimension (LxWxH) | 2.87X2.14X2.28m |
| Machine weight | 3.5 TON |
Mould clamping system
| Mould clamping force | 30 KN |
| Platen opening strokes | 120-350mm |
| Plate stroke | 380mm |
| Max mould sizes(WxH) | 360X300mm |
Extrusion system
| Screw diameter | 55mm |
| Screw slenderness ratio | 24 L/D |
| Plasticizing ability (HDPE) | 45 KG/H |
| Screw heating stage/zone | 3 Zone |
| Screw heating power | 10.1 KW |
| Screw fan power | 0.14 KW |
| Extrusion motor power | 11 KW |
Head
| Head heating stage/zone | 5 Zone |
| Head heating power | 6.5 KW |
Energy consumption
| Total machine power | 40 KW |
| Oil motor power | 7.5 KW |
| Air pressure | 0.6-0.8 MPA |
| Compression air volume | 0.8-1 M3/H |
| Cooling water volume | 30 L/H |
Product Application Occasions and Scenarios for MEPER 5D 55d Extrusion Molding Machine:
The MEPER 5D 55d Plastic Extrusion Molding Machine is a versatile and efficient machine that can be used in various industries and scenarios. With its advanced features and high-quality construction, this machine is suitable for a wide range of applications. Here are some of the key occasions and scenarios where the MEPER 5D 55d Extrusion Molding Machine excels:
1. Plastic Product Manufacturing: The MEPER 5D 55d is ideal for producing a variety of plastic products such as bottles, containers, and packaging materials. Its precise control and high efficiency make it a valuable asset in plastic manufacturing facilities.
2. Automotive Industry: The machine's capabilities make it well-suited for producing automotive parts and components. Whether it's interior trim pieces, exterior panels, or other plastic parts, the MEPER 5D 55d can deliver consistent quality and performance.
3. Medical Equipment Production: In the medical industry, precision and reliability are crucial. The MEPER 5D 55d can be used to manufacture medical equipment components, ensuring compliance with quality standards and regulations.
4. Household Goods Manufacturing: From kitchenware to storage containers, the MEPER 5D 55d Extrusion Molding Machine can cater to the needs of household goods manufacturers. Its versatility and fast production capabilities make it a cost-effective solution for producing a wide range of consumer products.
5. Customized Product Development: The flexibility of the MEPER 5D 55d allows for easy customization of products. Whether it's changing product dimensions or experimenting with new designs, this machine can handle diverse requirements with ease.
Overall, the MEPER 5D 55d Extrusion Molding Machine is a top choice for industries looking for a reliable and efficient solution for plastic extrusion molding. With its CE/ISO9001:2008 certification, negotiable price, and impressive specifications such as a screw diameter of 55mm and a maximum product volume of 2L, this machine offers exceptional value for manufacturers seeking a fully automatic blow molding machine at competitive prices.
Product Customization Services for Plastic Extrusion Molding Machine:
Brand Name: MEPER
Model Number: 5D 55d
Place of Origin: China
Certification: CE/ISO9001:2008
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Max product volume: 2L
Mould clamping force: 30KN
Screw slenderness ratio: 24
Applicable materials: PE PP PVC PA
Machine weight: 3.5ton
