제품 상세 정보:
결제 및 배송 조건:
|
| 폼 클램핑 힘: | 90KN | 가소화 능력(HDPE): | 90 |
|---|---|---|---|
| 적용 가능한 소재: | PE PP PVC PA | 맥스 생성물량: | 5L |
| 나사의 가늘기 비율: | 24 | 나사 직경: | 80mm |
| 기계 무게: | 4.9TON | 플레이트 스트로크: | 300mm |
| 강조하다: | 5L extrusion blow machine,Highly Durable Molding Extruder Equipment,5L Molding Extruder Equipment |
||

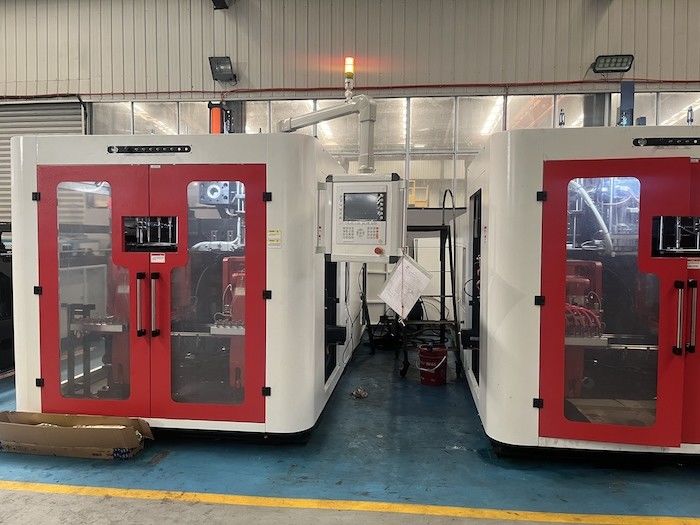

MP plastic blow molding machine is designed to process various plastic hollow products made of high molecular materials. It is capable of producing hollow products ranging from 5 milliliters to 100 liters in volume. The types of products that can be manufactured using this machine include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, as well as automotive parts, among others.
This machine is versatile in that it can handle a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA, and ensures a flawless production process.
a) The extruding device is equipped with a variable frequency motor to meet the rotation change requirements of the screw during the blowing process. It can utilize a screw with a high slenderness ratio to process various materials, providing strong plasticizing ability, high production efficiency, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring quick, stable, and uniform heating.
b) By incorporating different heads into the combined extrusion system between two extrusion machines, products with a visible strip line or double layers can be produced.
c) The mould clamping device utilizes a toggle type mechanism and linear guider. It is a double station setup, enabling fast and stable movement of the mould platen.
d) The hydraulic oil loop has been redesigned for improved performance, delivering power savings, rapid operation, and stability.
e) Installation and maintenance of hydraulic elements are convenient, with a removable and mobile oil tank provided for ease of access.
f) The entire machine is computer-controlled, with a hydraulic system employing dual proportional control. It features fault automatic alarm functions, ensuring reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.
g) Three operation modes, "Manual", "Semi Auto", and "Full Auto" are available for selection.
h) The safety door is equipped with electric and mechanical safety devices to prevent mould closing when the door is open, enhancing the safety and reliability of the operation.
i) This machine offers two blowing functions – straight cutting and oblique cutting.
Basic specifications
| System Item | Unit | Basic Parameter |
|---|---|---|
| Applicable materials | - | PE PP PVC PA… |
| Max product volume | L | 5 |
| Number of heads | SET | 1,2,3,4 |
| Machine dimension (LxWxH) | M | 3.6×2.3×2.36 |
| Machine weight | TON | 4.9 |
Mould clamping system
| System Item | Unit | Basic Parameter |
|---|---|---|
| Mould clamping force | KN | 90 |
| Platen opening strokes | MM | 180-480 |
| Plate stroke | - | 300 |
| Max mould sizes(WxH) | MM | 400×420 |
Extrusion system
| System Item | Unit | Basic Parameter |
|---|---|---|
| Screw diameter | MM | 80 |
| Screw slenderness ratio | L/D | 24 |
| Plasticizing ability (HDPE) | KG/H | 90 |
| Screw heating stage/zone | Zone | 4 |
| Screw heating power | KW | 15.85 |
| Screw fan power | KW | 0.28 |
| Extrusion motor power | KW | 30 |
Head
| System Item | Unit | Basic Parameter |
|---|---|---|
| Head heating stage/zone | Zone | 10 |
| Head heating power | KW | 16.5 |
Energy consumption
| System Item | Unit | Basic Parameter |
|---|---|---|
| Total machine power | KW | 80 |
| Oil motor power | KW | 11 |
| Air pressure | MPA | 0.6-0.8 |
| Compression air volume | M3/H | 1.2 |
| Cooling water volume | M3/H | 0.4 |
Whether you are in the packaging industry, automotive sector, or consumer goods manufacturing, this Plastic Extrusion Molding Machine from MEPER is designed to meet your production needs. Its plasticizing ability for materials such as PE, PP, PVC, and PA is exceptional, making it ideal for various types of plastic products.
With a plate stroke of 300mm and a maximum product volume of 5L, this machine offers flexibility in creating different sized products. The mould clamping force of 90KN ensures the stability and precision required for high-quality output.
Operating the MEPER 7D 70FD is convenient as it is a fully automatic blow molding machine, streamlining the production process and increasing efficiency. The machine's supply ability of 100 sets per month makes it readily available for your manufacturing needs.
When considering purchasing the MEPER 7D 70FD, the minimum order quantity is only 1 set, and the price is negotiable, providing flexibility in acquiring this advanced machinery. The standard packaging and delivery time of 25-35 work days further enhance the convenience of acquiring this equipment.
Payment terms accepted for this machine include L/C and T/T, offering convenient options for completing your purchase. Whether you are looking to expand your production capabilities or upgrade your existing machinery, the MEPER 7D 70FD Plastic Extrusion Molding Machine is a reliable choice for various industrial applications.
Product Packaging and Shipping:
The Extrusion Molding Machine will be carefully packaged to ensure safe delivery to your location. It will be securely wrapped in protective materials to prevent any damage during transit.
For shipping, we partner with reliable carriers to ensure timely and safe delivery of the machine. You will receive a tracking number once the product has been shipped so you can monitor its journey to you.
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name of the Extrusion Molding Machine is MEPER.
Q: What is the model number of the Extrusion Molding Machine?
A: The model number of the Extrusion Molding Machine is 7D 70FD.
Q: Where is the Extrusion Molding Machine manufactured?
A: The Extrusion Molding Machine is manufactured in China.
Q: What certifications does the Extrusion Molding Machine have?
A: The Extrusion Molding Machine is certified with CE/ISO9001:2008.
Q: What is the minimum order quantity for the Extrusion Molding Machine?
A: The minimum order quantity for the Extrusion Molding Machine is 1 set.
