제품 상세 정보:
결제 및 배송 조건:
|
| 예어: | hdpe 병 불기 기계 | 클램핑 력: | 120KN |
|---|---|---|---|
| 층: | 네 | 유형: | 플라스틱 가공 기계 |
| 컨테이너 적재 능력: | 500ml | 재료: | 플라스틱 |
| 플레이트 스트로크: | 540mM | 적용 가능한 자료: | HDPE + EVOH+AD |
| 강조하다: | HDPE extrusion molding machine,EVOH extrusion molding machine,single head extrusion machine |
||

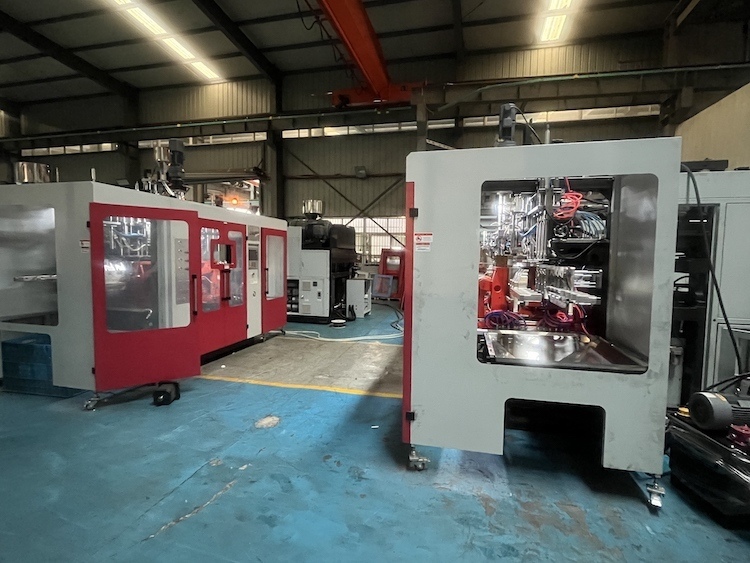

An Extrusion Blow Molding Machine is specialized equipment designed for shaping plastic materials. The process begins by melting plastic resins including High-Density Polyethylene (HDPE), Low-Density Polyethylene (LDPE), Polypropylene (PP), or Polyvinyl Chloride (PVC).
The machine extrudes the molten plastic into a hollow tube (parison), which is then enclosed by a mold. Compressed air is blown into the parison, causing the plastic to expand and conform to the mold cavity. After cooling and solidification, the finished hollow plastic product is ejected for further processing or use.
| 80FDE-4S(100) | ||
|---|---|---|
| SPECIFICATION | MATERIAL | PE |
| MAX CONTAINER CAPACITY | L | 500ML |
| NUMBER OF DIE | set | 4 |
| MACHINE DIMENSION(LxWxH) | M | 3.82x4x2.5 |
| TOTAL WEIGHT | ton | 8.6 |
| CLAMPING UNIT | ||
| CLAMPING FORCE | kN | 120 |
| PLATEN OPENING | mm | 240-600 |
| TOGGLE STROKE | mm | 540 |
| MAX MOULD SIZE (WxH) | mm | 480x500 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | mm | 75 |
| SCREW L/D RATIO | L/D | 24 |
| PLASTICIZING CAPACI(HDPE) | Kg/h | 85 |
| SCREW HEATING ZONE | zone | 3 |
| SCREW HEATING POWER | kW | 15.3 |
| FAN POWER | kW | 0.14 |
| EXTRUDER MOTOR POWER | kW | 22 |
| DIE HEAD | ||
| DIE HEAD HEATING ZONE | zone | 15 |
| POWER OF DIE HEAD HEATING | kW | 16.5 |
| MAX DIAMETER OF MOUTH MOLD | mm | 35 |
| ENERGY-CONSUMPTION | ||
| TOTAL POWER OF MACHINE | kW | 72 |
| POWER OF OIL PUMP MOTO | kW | 15 |
| AIR PRESSURE | Mpa | 0.6-0.8 |
| CONSUMPTION COMPRESSION AIR | m3/min | 1.5 |
| CONSUMPTION COOLING WATER | m3/min | 0.4 |
Extrusion blow molding is widely used for manufacturing various plastic containers including:
