| 적용 가능한 자료: | HDPE + EVOH+AD | 플레이트 스트로크: | 540mM |
|---|---|---|---|
| 예어: | hdpe 병 불기 기계 | 클램핑 력: | 120KN |
| 유형: | 플라스틱 가공 기계 | 층: | 네 |
| 모터: | 지멘스 | 컨테이너 적재 능력: | 500ml |
| 강조하다: | automatic blow moulding machine,extrusion molding machine with warranty,MEPER 80FD molding equipment |
||

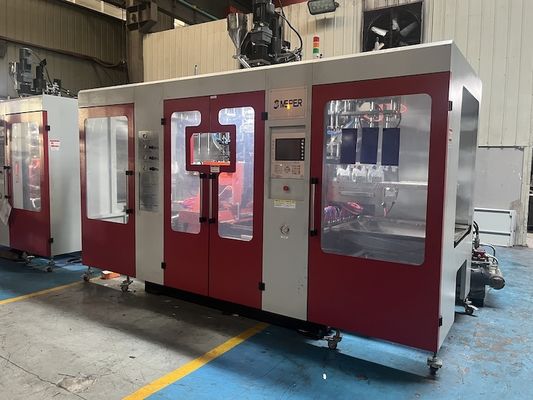

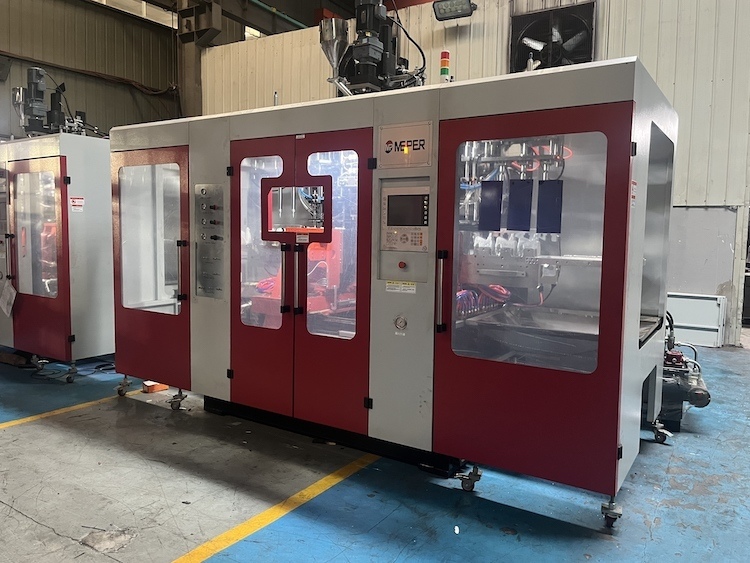

An Extrusion Blow Molding Machine is a specialized piece of equipment designed for shaping plastic materials. It starts by melting plastic resin, commonly using types such as HDPE, LDPE, polypropylene (PP), or PVC.
Once the plastic is melted, the machine extrudes it into a hollow tube known as a parison. This parison serves as the foundation for the molding process.
The next step involves closing a mold around the parison. With the mold securely in place, air is blown into the parison, causing it to expand and take the exact shape of the mold cavity.
After the plastic has cooled and solidified within the mold, the machine then ejects the finished hollow product, ready for further processing or use.
| 80FDE-4S(100) | ||
|---|---|---|
| SPECIFICATION | MATERIAL | PE |
| MAX CONTAINER CAPACITY | L | 500ML |
| NUMBER OF DIE | set | 4 |
| MACHINE DIMENSION(LxWxH) | M | 3.82x4x2.5 |
| TOTAL WEIGHT | ton | 8.6 |
| CLAMPING UNIT | ||
| CLAMPING FORCE | kN | 120 |
| PLATEN OPENING | mm | 240-600 |
| TOGGLE STROKE | mm | 540 |
| MAX MOULD SIZE (WxH) | mm | 480x500 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | mm | 75 |
| SCREW L/D RATIO | L/D | 24 |
| PLASTICIZING CAPACI(HDPE) | Kg/h | 85 |
| SCREW HEATING ZONE | zone | 3 |
| SCREW HEATING POWER | kW | 15.3 |
| FAN POWER | kW | 0.14 |
| EXTRUDER MOTOR POWER | kW | 22 |
| DIE HEAD | ||
| DIE HEAD HEATING ZONE | zone | 15 |
| POWER OF DIE HEAD HEATING | kW | 16.5 |
| MAX DIAMETER OF MOUTH MOLD | mm | 35 |
| ENERGY-CONSUMPTION | ||
| TOTAL POWER OF MACHINE | kW | 72 |
| POWER OF OIL PUMP MOTO | kW | 15 |
| AIR PRESSURE | Mpa | 0.6-0.8 |
| CONSUMPTION COMPRESSION AIR | m3/min | 1.5 |
| CONSUMPTION COOLING WATER | m3/min | 0.4 |
Extrusion blow molding is widely used to create various plastic containers and objects, including:
